Use Case Behavior Diagrams#

This file is a continuation of the Use Cases file. It will provide the behavior diagrams of the different use cases.

This section is not yet complete as of December 2024. This is a working document, as progression is made throughout the solution based on prioritized work.

Excluding the Guidelines & Template sections, each section below relates to a specific sub-system as outlined in the Scope Tree:

  1. General User

  2. Admin Access

  3. Community Member

Identifying Top High Priority Use Cases#

When identifying high use case needs for this course, consider ones that:

  • Directly address stakeholder's primary needs

  • Have a significant influence on the performance of your system

  • Address situations considered to be high risk, including ones that focus on undesired occurrences

  • Require your system to perform complex and important tasks

  • Occur very frequently

The XLSX for this is here.

PRIORITY ACTOR ACTION How Critical? (H/M/L) UC Diagram (miro) UCBD
1 general system user Searches for information on a specific plant. High here Plant Search
2 general system user Provides feedback or reports an error High here 1. Gives Feedback
2. Reports Error
3 System admin Manages all accounts High here 1. Create Community Lead
2. Add Community Lead
3. Make Account Inactive for Specific Community
4. Create general user account
5. Delete account
4 System admin Creates city admin accounts High here See #3’s #1
5 Gardener – Community (member) Access community announcements. High here Access Announcements
6 Gardener – Community (member) Includes all general system user actions & access is based on a unique community ID High here ?
7 general system user Cannot access any community-specific training, materials, or special information that only members or specific teams can see UNLESS they are also a member of that community. High here ?
8 City Admin – Community Lead Assigns teams & chores to their community gardeners. High here ?
9 Gardener – Community (member) Turn on/off ability to be seen by other community members. (Does not apply to City admins.) High here ?
10 System provides a way to filter plants based on user selection criteria (e.g.: color, seeding date, etc) High here Plant Filtering

UCBD Guidelines#

  1. Write as shall statements

  2. Write as correct statements (what you’re saying is accurate)

  3. Write clear & precise statements

    • One idea per requirement
    • If “and” or similar conjunction in requirements, considered better to split

  4. Write unambiguous statements (only 1 way to interpret)

  5. Write objective statements (if anything is subjective, qualify with some quantifiable measure)

  6. Write verifiable statements (some measurable way to say requirement is met)

  7. Write consistent statements (does not contradict another requirement)

Some organizations may also include the following as their best practices:

  1. Implementation independent (functional, not structural)

  2. Achievable (feasible)

  3. Conforming (consistent with regulations imposed by stakeholders & any other governing entity)

UCBD Template#

NOTE: Utilize mermaid documentation here when designing your SysML to work within MarkDown and on GitHub

Use Case Name: TBD

Initial Conditions:

  1. TBD

---
title: Title Here
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: Step 1
    System-->>User: Step 2 ...

Ending Conditions:

  1. TBD

Notes:

  1. TBD

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “Functionality 1”
** “Functionality 2”
*** “Functionality 3”

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

SUBSYSTEM: General User Actions#

The subitems in this section all belong to the GeneralUser system actions set.

Below you will find the use case behavior diagrams for this subsystem.

As of Nov 29, 2024 – this is not complete only parts were needed at the time of creation and part of a Systems Design certification course. As work progresses, this will continue to be updated.

UCBDs for General User Actions:

  1. Set GPS Permissions

  2. User Checks Location Settings

  3. Plant Search

  4. Plant Search (Filter)

Set GPS Permissions#

Use Case Name: System Requests Access to GPS – Get User Approval

Initial Conditions:

  1. First time running the system as a new user or user tries to use GPS modules within the app (e.g.: checking weather, turning on weather-based gardening notifications) without permissions

Mermaid Diagram:

---
title: System Requests Access to GPS – Get User Approval
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    participant Settings as System<br>Settings
    %% links System: {"Requirements": ""}
    User->>+System: One of the initial conditions are triggered.
    System->>Settings: Checks if GPS permissions approved
    Settings-->>System: Returns FALSE
    System-->>User: The system asks if the user would like to use GPS<br />to determine USDA zone (where applicable)<br>and local regional weather updates.
    User->>System: User chooses to automate their USDA zone via GPS.
    System-->>User:  System requests GPS permissions with information on how the data will be used.
    User->>System: User approves GPS permissions.
    System->>Settings: Updates GPS permissions
    Settings-->>System: Returns GPS settings
    System-->>-User: System provides a notice inquiring if the user wants the system<br>to always be scanning GPS if it’s on, only check once a day (and if so when),<br>or only when they manually request updates requiring GPS (default).
    User->>+System: User provides GPS preference settings.
    System->>Settings: Updates GPS settings
    Settings-->>System: Returns GPS settings
    System-->>-User: System provides a thank you message with reminder that weather updates<br>for gardening alerts will only work when GPS is turned on & that<br>they can change their preferences under their settings.
    User->>System: User closes notification & if no prior screen to return to is returned to “home”.

Ending Conditions:

  1. GPS permissions are turned on

  2. Unique user’s profile has auto-update USDA zone turned on

  3. Unique user’s USDA zone field is filled in and user unable to edit

  4. Unique user’s profile settings are set to user’s preference and editable in their profile

Notes:

  1. Need to create a general system UCBD for when user declines.

  2. Need to ensure that use case diagrams & scope trees are updated, as the GPD settings is new.

  3. “home” is either their profile or an area user can locate all components they have access to.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “System checks for approval”
** “System notifies user”
*** “System uses GPS data for weather or USDA zone needs”

Identifying Missed Functionality – the system shall be able to:

  • *Check if GPS permissions are approved
  • **Notify user when GPS is required and not yet approved
  • **If unable to connect to GPS, notify user
  • **If unable to connect to GPS and no USDA zone saved, will force user to manually provide USDA zone
  • ***(with proper permissions & based on frequency settings) automatically check GPS when attempting to pull current or past weather data
  • ***will ensure either GPS or manual USDA zone is utilized

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

User Checks Location Settings#

Use Case Name: User Checks Location Settings

Initial Conditions:

  1. GPS is on and set to automatic update OR it is off

  2. USDA zone is empty or USDA zone needs to be updated.

---
title: User Checks Location Settings
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: General user accesses their profile to update their USDA zone.
    create participant Settings
    System->>Settings: Asks for location setting information<br>& if GPS automated access approved
    alt GPS is on
        System->>"GPS API": Use GPS to get location data
        "GPS API"-->>Settings: Return location data
        destroy Settings
        Settings-->>System:  Provides user location setting information in JSON format.
        System-->>User: Among other elements, the system shall provide a field that the<br>user can view their most recent location based on GPS data.
    else Manual Location
        destroy Settings
        Settings-->>System:  Provides user location setting information in JSON format.
        System-->>User: Among other elements, the system shall provide a field that the<br>user can manually update - regardless of the GPS location data.
    end

Ending Conditions:

  1. Unique user’s profile is set to manually update USDA zone

  2. USDA zone has been updated and saved

Notes:

  1. By default, automating USDA zone by GPS location should be turned off.

  2. Profile can be accessed from anywhere within the system.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* TBD
** TBD
*** TBD

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

Use Case Name: General User searches for plant

Initial Conditions:

  1. Any user has access to this capability.

  2. User accesses the plant search function by choosing the spyglass icon seen from any screen.

---
title: General User Searches for Plant
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: System user engages the search plant component.
    System-->>User: The system shall display the plant list view<br>in the same state the user last searched for a plant with.
    loop types in search field
        User->>System: User provides text in the search field.
        create participant PlantDB@{ "type" : "database" }
        System->>PlantDB: Queries for any matches of text provided.
        destroy PlantDB
        PlantDB-->>System: The system shall provide all potential plants with<br>data that at least partially matches search term.
        System-->>User: Provides updated screen with only the provided potential matches
    end
    opt No Matches Found
        System-->>User: If no plants in the database match search criteria,<br>the system shall provide a clear message about this to the user.
    end

Ending Conditions:

  1. The system has provided a paginated list of plants the user can choose from to learn more about.

  2. User may select a plant to learn more about it and engage the plant view.

Notes:

  1. Search is intended for plant name, not description or characteristics.

  2. Filtering allows for characteristics to be utilized in the search.

  3. When chosen, the plants would open a pop-up that when closed or backed out of would take back to the prior screen.

  4. There should eventually be a way for the user to request a new plant to be added to the database from this view only.

  5. Plant list is paginated and alphabetized.

  6. Plant list / search view has a text field to put in a plant name (including scientific)

  7. Plant list comes from a database – see documentation on database requirements.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* Visual Updates
** TBD
*** TBD

Identifying Missed Functionality – the system shall be able to:

  • *Provide access to the plant search component from anywhere in the system for any user
  • *Provide a view of each plant if user tries to access more information about it
  • *Display the plant list view in such a manner that each row of a plan takes up the same % of space & still be readable.

SysML Diagram:

Below is the SysML Diagram with requirements table, which can be seen here in Miro and last updated 20241208.

UCBD SysML Diagram: General System User - Plant Search

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.GenUser Plant Search OR.1 OR1.1 The system shall display the plant list view with max_visible_plants_num showing in the same state the user last searched for a plant. display_plants_all
System.GenUser Plant Search OR.2 OR1.2 The system shall filter out all plants that do not at least partially match the search term. plant_search_by_name
System.GenUser Plant Search OR.3 OR1.3 If no plants in the database match search criteria, the system shall provide a clear message about this to the user. msg_plant_404

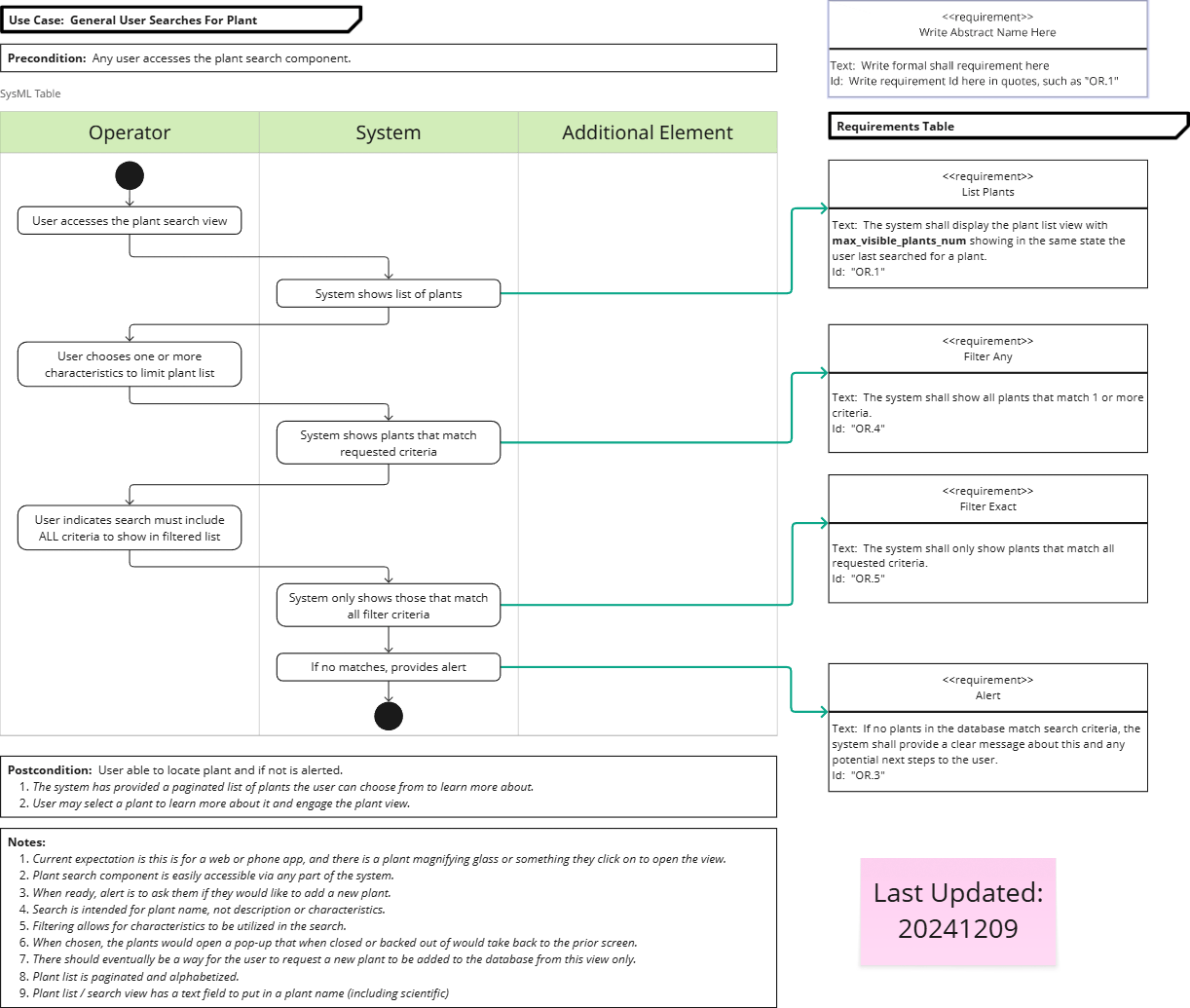

Plant Search (Filter)#

Use Case Name: General User searches for plant with filters

Initial Conditions:

  1. Any user has access to this capability.

  2. User accesses the plant search function by choosing the spyglass icon seen from any screen.

---
title: General User searches for plant with filters
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: System user engages the search plant component.
    System-->>User: The system shall display the plant list view<br>in the same state the user last searched for a plant with.
    loop selects filtering option(s)
        User->>System: User chooses the filter option to display certain crops or plants.
        create participant PlantDB@{ "type" : "database" }
        System->>PlantDB: Queries for any matches of filters.
        destroy PlantDB
        PlantDB-->>System: Returns all plants that match at least 1 criteria.
    end
    alt at least 1 matching plant
        alt match any
            System-->>User: The system shall show all plants that match 1 or more criteria.
        else match all
            User->>System: User checks box to confirm they only want to see plants that match all filter conditions.
            System-->>User: The system shall only show plants that match all requested criteria.
        end
    else no plants match
        System-->>User: If no plants in the database match search criteria,<br>the system shall provide a clear message about this to the user.
    end

Ending Conditions:

  1. The system has provided a paginated list of plants the user can choose from to learn more about.

  2. User may select a plant to learn more about it and engage the plant view.

Notes:

  1. Search is intended for plant name, not description or characteristics.

  2. Filtering allows for characteristics to be utilized in the search. (e.g.: companion plant, color, size, benefits, season)

  3. When chosen, the plants would open a pop-up that when closed or backed out of would take back to the prior screen.

  4. There should eventually be a way for the user to request a new plant to be added to the database from this view only.

  5. Plant list is paginated and alphabetized.

  6. Plant list / search view has a text field to put in a plant name (including scientific)

  7. Plant list comes from a database – see documentation on database requirements.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* Additional specific filtering options
** Group TBD
*** Group TBD

Identifying Missed Functionality – the system shall be able to:

  • See items from plant search
  • *Filter for plants within suggested frost dates
  • *Filter for plants that need to be sown / transplanted / etc within 1 week of current date (may not be relevant except for sown since not planning on tracking everything the gardener does – there are other systems for that)

SysML Diagram:

Below is the SysML Diagram with requirements table, which can be seen here in Miro and last updated 20241209.

UCBD SysML Diagram: General System User - Plant Search (Filter)

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.GenUser OR.4 OR2.1 The system shall show all plants that match 1 or more criteria. filter_any
System.GenUser OR.5 OR2.2 The system shall only show plants that match all requested criteria. filter_exact

View Plants#

Use Case Name: General User looks at specific plant data (View Plants)

Initial Conditions:

  1. Any user has accessed the plant search component

  2. A specific plant has been chosen to view

---
title: View Plants
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    User->>+System: User has accessed a specific plant’s view.
    create participant PlantDB
    System->>PlantDB: Requests data about specific plant,<br>not including the information already shared<br>when it showed on search or filter.
    destroy PlantDB
    PlantDB-->>System: Returns full plant data<br>(minus excluded segments) in JSON format.<br>Calculates planting date based on user's growing zone.
    System-->>-User: The system shall display data about the plant<br>with the photo, common name, scientific name, & planting / harvest dates at the top.<br>Rest of data can expand when interested to see rest & save screenspace.<br>The system shall provide a way to showcase groupings of data<br>that the user can choose to see. By default, the view is characteristics<br>such as color, if it’s an annual or perennial for the given zone, size, etc.
    User->>+System: User opts in to view information on the plant’s companion plants.
    System-->-User: Updates plant view to show the list of plants<br>the current plant is a companion plant of.
    User->>+System: User opts in to view planting information.
    System-->-User: The system shall show estimated planting (seeding or transplant)<br>dates based on user’s calculated frost dates. The system shall provide<br>information on the plant’s germination time, seed spacing, time to harvest, etc.

Ending Conditions:

  1. User can easily find information on the plant without having to scroll a lot.

  2. User can close the view and to see the system’s component they were at previously.

Notes:

  1. This view might be used in other locations, such as the plot component to see what’s growing.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “Functionality 1”
** “Functionality 2”
*** “Functionality 3”

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

Give Feedback#

This is the same as it was first planned back in Jan 2025. Likely needs review before final implementation.

Use Case Name: General User Submits Improvement Idea / Gives Feedback

Initial Conditions:

  1. General user has an idea on how to improve something
  2. feedback submission is always available

---
title: General User Submits Improvement Idea / Gives Feedback
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: General user has idea for improvement<br>while working within any component of the system.<br>They engage with the feedback component.
    System-->>User:  The system shall provide a message that asks<br>if they are submitting feedback or an error,<br>and provides a way to indicate if the current “location”<br>is what they are providing feedback on or not.
    User->>System: User chooses an option to indicate<br>if it is about the most recent component<br>and marks submission as feedback.
    System-->>User: If general user said YES to the component ask,<br>then the system provides a filled in & an uneditable<br>field that indicates where the user was last.<br>The system shall provide the feedback<br>reporting component view which includes<br>a text field for their feedback.
    User->>System: User fills in feedback text field then submits report.
    create participant GHI as "GitHub Issues"
    System->>GHI: System takes all information from<br>the feedback reporting view<br>& sends a report to wherever it’s supposed to go.
    destroy GHI
    GHI-->>System: ACK or Error
    System-->>-User: System closes feedback reporting view and<br>alerts general user the status of their submission<br>and any next steps required.
    User->>System: User closes notification.

Ending Conditions:

  1. Feedback submission sent to wherever it is supposed to go – initially an email
  2. User is notified of their submission & brought back to their most recent component

Notes:

  1. When the system is integrated with GitHub to automate creation of tickets from bug reports & feedback (to be further through through), the link to the Github issue will be included in the unique user’s profile.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “Functionality 1”
** “Functionality 2”
*** “Functionality 3”

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

Report Error#

This is the same as it was first planned back in Jan 2025. Likely needs review before final implementation.

NOTE: this is VERY similar to the other - could potentially consolidate into a single mermaid, but it would go against what was taught in the course. Need to consider what is best for development.

Use Case Name: General User Reports Issue

Initial Conditions:

  1. General user has run into an issue with the system
  2. feedback submission is always available

---
title: General User Reports Error
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as Human
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: General user has an error to report<br>while working within any component of the system.<br>They engage with the feedback component.
    System-->>User: The system shall provide a message that<br>asks if they are submitting feedback or an error, and<br>provides a way to indicate if the current “location” is<br>what they are providing feedback on or not.
    User->>System: User chooses an option to indicate<br>if it is about the most recent component<br>and marks submission as bug report.
    System-->>User: If general user said YES to the component ask,<br>then the system provides a filled in & uneditable field<br>that indicates where the user was last.<br>The system shall provide the bug reporting<br>component view which includes a text field for<br>their feedback along with prompts to<br>understand how to reproduce the bug.
    User->>System: User fills in required field(s) then submits report.
    System-->>-User:  System takes all information from the feedback reporting view<br>& sends a report to wherever it’s supposed to go.<br>System closes feedback reporting view<br>and alerts general user that their submission is sent.
    %% create participant GHI as "GitHub Issues"
    %% System->>GHI: System takes all information from<br>the feedback reporting view<br>& sends a report to wherever it’s supposed to go.
    %% destroy GHI
    %% GHI-->>System: ACK or Error
    User->>System: User closes notification.

Ending Conditions:

  1. Bug report sent to wherever it is supposed to go – initially an email
  2. User is notified of their submission & brought back to their most recent component

Notes:

  1. When the system is integrated with GitHub to automate creation of tickets from bug reports & feedback (to be further through through), the link to the Github issue will be included in the unique user’s profile.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “Functionality 1”
** “Functionality 2”
*** “Functionality 3”

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

SUBSYSTEM: Admin (Elevated User) Access#

This is the same as it was first planned back in Jan 2025. Likely needs review before final implementation.

NOTE: Additional deliverables not yet planned, but should leverage the UCBD Template:

  • Make Account Inactive For Specific Community
  • Create Account
  • Delete Account

Create Community Lead#

This is the same as it was first planned back in Jan 2025. Likely needs review before final implementation.

Use Case Name: Admin Creates Community Lead Account

Initial Conditions:

  1. Need to upgrade account to community lead after confirming with community leadership to provide this level of access to the requesting individual
  2. Community already exists in the system
  3. Potential community lead is not in the system

---
title: Admin Creates Community Lead Account
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as SysAdmin
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: System Administrator checks if<br>user exists via provided email address.
    System-->>User: The system performs a search and<br>when it cannot find the user,<br>informs systems admin to create an<br>account and upgrade to Community Lead.
    User->>System: System Admin requests new user account creation.
    System-->>User: The system provides a new user creation view<br>only system administrators have access to.
    User->>System: System Admin completes all mandatory fields,<br>adds user to requested community with<br>elevated community lead role, & submits new account.
    System->>System: The system creates the new user with the provided fields.<br>The system adds the user as a member to the requested community.<br>The system elevates the user role to Community Lead for that community.
    System-->>-User: System provides successful notification<br>of new user – returns account data.
    %% create participant GHI as "GitHub Issues"
    %% System->>GHI: System takes all information from<br>the feedback reporting view<br>& sends a report to wherever it’s supposed to go.
    %% destroy GHI
    %% GHI-->>System: ACK or Error
    User->>+System: System Admin closes notification.

Ending Conditions:

  1. New user created tied to a specific community
  2. New user has elevated permissions only within that assigned community

Notes:

  1. Need UCBD for when the community is not in the system
  2. Users can join more than 1 community, but can only access data related to communities they have joined and been approved by the community lead

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “Functionality 1”
** “Functionality 2”
*** “Functionality 3”

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

Upgrade User to Community Lead#

This is the same as it was first planned back in Jan 2025. Likely needs review before final implementation - especially since this is part of creating a community lead.

Use Case Name: Admin Upgrades User to Community Lead Account

Initial Conditions:

  1. Need to upgrade account to community lead after confirming with community leadership to provide this level of access to the requesting individual

---
title: Admin Upgrades User to Community Lead Account
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as SysAdmin
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: System Administrator checks if<br>user exists via provided email address.
    System-->>User: When found, the system returns the user account.
    User->>System: System System Admin requests edit for user account.
    System-->>User: After confirming authentication / authorization,<br>the system unlocks editable fields – including the<br>option to add one or more communities<br>to the requested user.
    User->>System: System Admin adds user to requested community with<br>elevated community lead role and saves updates.
    System->>System: The system adds the user as a member to the requested community.<br>The system elevates the user role to Community Lead for that community.<br>
    System-->>-User: The system provides a notification that the user was updated.
    User->>+System: System Admin closes notification.

Ending Conditions:

  1. If user is not already in a community, their account is updated
  2. User is given elevated privileges only within that assigned community

Notes:

  1. Need UCBD for when the community is not in the system
  2. Users can join more than 1 community, but can only access data related to communities they have joined and been approved by the community lead

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “Functionality 1”
** “Functionality 2”
*** “Functionality 3”

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD

SUBSYSTEM: Community Member#

This is not fully fleshed out at the moment, as there are some elevated user access to be considered.

General Member - Access Announcements#

Use Case Name: Community Garden member or supporter accesses announcements component

Initial Conditions:

  1. General user also is a member of a Community Garden
  2. Community Garden member or supporter accesses their specific community
  3. Community Garden member or supporter is only in 1 community

---
title: Community Garden member or supporter accesses announcements
config:
    theme: dark
---
sequenceDiagram
    autonumber
    actor User as CG Member
    participant System as "The System"
    %% links System: {"Requirements": ""}
    User->>+System: Community Garden member or supporter<br>accesses the community garden section of the system
    System-->>-User: The system provides a general Community Garden<br>view where at the top is a drop down of<br>community gardens they belong to – by default,<br>it is the most recent community they accessed.<br><br>The system shall provide in this new view<br>a way to access the different components for teams,<br>chores, plot management, and apprentice training.<br><br>The system shall provide the announcements<br>for that community in the center and<br>taking up most of the view with<br>an option for Community Garden member & community leads ONLY<br>to post an announcement.<br><br>If no current announcements, a message<br>will indicate that there are none.<br><br>All announcements that are still active<br>will show date submitted, date expiring, who submitted<br>the announcement, and text explanation of what’s being announced.

Ending Conditions:

  1. Community Garden member or supporter still able to see all options for the system as before, with some additional access points directly related to their community
  2. Able to view all announcements for each community the user is a part of

Notes:

  1. Need UCBD to show what happens if user is in multiple communities.

Identifying Missed Functionality:

Additional Grouping of Requirements Description
* “Functionality 1”
** “Functionality 2”
*** “Functionality 3”

Identifying Missed Functionality – the system shall be able to:

  • *item 1 of F1
  • **item 1 of F2
  • ***item 1 of F3

SysML Diagram:

TBD

Requirements Table:

See the requirement constants definition table for more. (Including this section!)

Component Function Single Unique ID Unique ID Requirements Unique Name
System.COMPONENT FUNCTION OR.X ORX.Y TBD TBD
